DECODER vu+ solo2

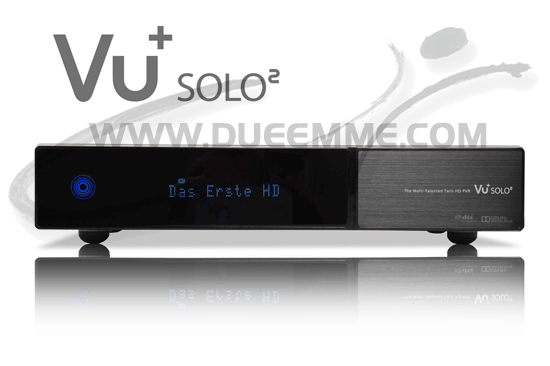

DECODER VU+ SOLO2 LINUX HD

Art. 53.14

The new generation. The Linux-based high-end Twin Tuner Full HD Receiver provides an unprecedented multimedia experience.

Full HD 1080p digital satellite receiver for digital TV and radio programs.
The main feature of the 1300-MHz processor the VU+ Solo2.
Experience high definition TV with your VU+ Solo2.

Transcoding function
Airplay feature
Opera Browser
HbbTV
HDMI 1.4
HD PIP
Gigabit Lan
Plug and Play support for 2.5" SATA - Hard Drives
12 character VFD display
External 12 V power supply


Caratteristiche Tecniche

  • Vu+ Solo2 Technical Information:

    1300 MHz MIPS processor
    256MB Flash
    1GB DDR3 DRAM
    Gigabit Lan
    1 x DVB Common-Interface Slot
    2 x Smart Card Reader (Xcrypt)
    3 USB ports (1x front, 2x rear)
    SPDIF optical audio output (digital)
    1 x HDMI 1.4 video / audio output (digital)
    1 x Scart (TV)
    1 x RCA video output
    2 x audio output (L / R) RCA (analog)
    Plug and Play support for 2.5" SATA - Hard Drives
    unlimited channel lists for TV / Radio
    EPG (electronic program guide) support
    Support of Bouquet lists
    OSD in many languages ​​and skin-support
    automatic / manual channel search
    DiSEqC 1.0/1.1/1.2, USALS
    External 12 volt power supply
    Power switch

  • VU+ Solo2 Specifications:

    DVB-S2 tuner:
    Input frequency range 950 .. 2150 MHz
    Signal Level - 65 dBm ... - 25 dBm
    Tuner Input Connector F-Type female
    Input impedance 75 ohms
    AFC + / - 3.5 MHz
    QPSK and 8PSK demodulation
    FEC Viterbi and Reed-Solomon
    Viterbirate 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9
    Roll-off Factor 35% Common-Interface:
    Common-Interface Power Consumption max. 0.35 A/5V video decoding:
    Video Compression MPEG-2 / H.264 and MPEG-1 compatible
    Video Standard PAL G / 25 Hz, NTSC
    4:3 / 16:9
    Letterbox for 4:3 TV-Device Output Digital:
    Output Level 0,5 Vss on 75 Ohm
    Frequency: 32 kHz, 44.1 kHz, 48 kHz
    S / PDIF optical, coaxial (AC3) audio decoder:
    Audio compression MPEG-1 & MPEG-2 Layer I and II, MP3
    Audio Mode Dual (main / sub), Stereo
    Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
    Output analog:
    Output Level L / R 0,5 Vss on 600 Ohm
    THD> 60 dB (1 kHz)
    Crosstalk <-65 dB Video parameter:
    Input Level FBAS 1 Vss + / - 0.25 dB on 75 Ohm TV Scart:
    Output: FBAS, RGB, Ethernet over OSD:
    1000/100/10 MBit compatible interface USB:
    USB 2.0 connector (3x) LNB power and DVB-S2 Tuner:
    LNB Current 400mA max. , Short-circuit proof
    LNB Voltage horizontal "no load 19.5 V" 17.6 V at 400mA
    LNB Voltage vertical "no load 14.5 V" 11,8 V at 400mA
    LNB is switched off in the standby mode, control of the satellite position:
    DiSEqC 1.0/1.1/1.2 and USALS - Rotor Control Power consumption:
    < 13W (in operation, with LNB) Goldwafers.com
    < 12W (in operation, without LNB)
    < 0.5 W (Deep-Standby-Mode) Input voltage:
    External power supply:
    Input:
    110-240V AC / 50-60Hz / 1,0 A
    Output:
    12V = / 3,5 A

    Further information on VU+ Solo2:

    Ambient Temperature +15 ° C. .. +35 ° C
    Humidity <80%
    Dimensions (W x D x H): 280 mm x 200 mm x 50
    Weight: 2.0 kg without HDD
