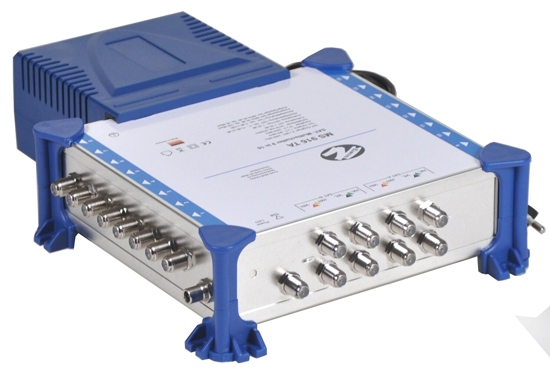

MULTISWITCH 9 IN 16 OUT+TER

This Multiswitch is inteded for small distribution networks as a standalone version.
Each user output is operated from users STB or TV.
A power supply is added to the switch for remote powering LNBs and feeding internal terrestrial amplifier.
Terrestrial (off-air) signals are routed active to each output

Made in Germany

• Frequency range 40-2400 MHz
• Inputs 8 SAT + 1 TERR
• Outputs 16
• Insertion loss SAT 950-2400MHz -2...+2dB ±2dB
• TERR 40-862MHz -2dB ±2dB
• Isolation SAT/SAT 30 dB
• Max. Output level SAT 102 dBµV
• TERR 90 dBµV
• Isolation SAT/TERR 30 dB
• Mains power supply 90-264V AC 50/60Hz
• Power consumption max. 30 W
• Dimensions (LxWxH) 272 x 198 x 63mm
• Weight ~1000...1400 g
• Switching parameters 14V, 18V | 0/22 kHz | DiSEqC 1.0
