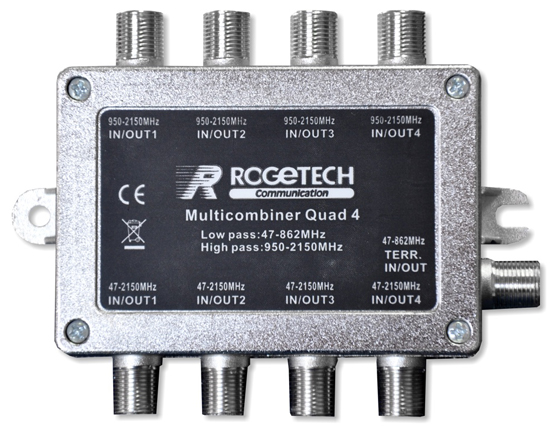

MIX TV-SAT 4 IN 4 OUT


MIX TV-SAT 4 IN 4 OUT

Art. 30.49

Miscela 4 segnali Satellite in ingresso con il segnale terrestre.
Uscita con 4 Segnali SAT + TV


Caratteristiche Tecniche

  • Inputs

    SAT: 4 (F) / Terr.: 1 (F)

    Outputs

    4 (F)

    Frequency range (MHz)

    SAT: 950-2300 MHz/Terr. 47-862 MHz

    Damping (terr.) at 47 MHz - 862 MHz

    - 10 dB +/- 0,5 dB

    Damping (SAT) at 950 MHz - 2300 MHz

    - 3 dB +/- 0,5 dB

    Return loss inputs

    > 8 dB (typ. 10 dB)

    Return loss outputs

    > 8 dB (typ. 10 dB)

    Isloation SAT/SAT > 30 dB
    Isolation SAT/TV > 30 dB
    Isolation TV/SAT > 30 dB
    Isolation TV/TV > 25 dB

    Screening factor


    47-300 MHz 85 dB / 300-470 MHz 80 dB
    470-1000 MHz 75 dB / >1000 MHz 55 dB

    Max. remote voltage (mA)

    1000 mA

    Power Supply of LNB(s) through receiver

    Yes

    Operating temperature

    - 20...+ 60 ° C

    Dimensions

    105 x 80 x 21 mm


Scheda tecnica creata da Due Emme Antenne ultimo aggiornamento 12/09/2019
