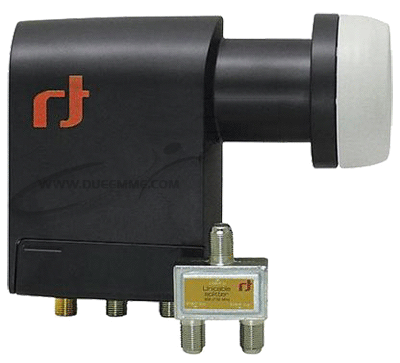

LNB INVERTO UNICABLE-QUAD


LNB INVERTO UNICABLE-QUAD

Art. 11.15

This LNB is a member of the innovative and award winning Unicable LNB series (single cable solution). It was specifically designed for the European DTH markets and provides optimized reception capabilities. The LNB allows for the connection of maximum 4 (Unicable enabled) Set Top Boxes with Single Tuner via two cables (or of maximum four STBs via one cable). A splitter unit* (Optional) enabling a flexible distribution of the signal at home is included. It is ready for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for the satellite broadcast reception across Europe.


Caratteristiche Tecniche

  • Low Band Input Frequency Range: 10.7~11.7 GHz
  • LO Frequency: 9.75 GHz
  • High Band Input Frequency Range: 11.7~12.75 GHz
  • LO Frequency: 10.6 C+Hz
  • LO Initial Accuracy: +/- 1.0 MHz
  • LO Temperature Drift: +/- 2.5 MHz
  • LO Phase Noise @ 10K Hz: -90 dBc/Hz max.
  • SCR Conversion Gain: 57 dB min.
  • Legacy Conversion Gain: 55 dB Min.
  • Gain Variation: +/- 0.75 dB/ 27 MHz
  • Image Rejection: 40 dB min.
  • 1 dB Compression Point (O/P): 0.0 dBm min.
  • Cross-pole Isolation: 20 dB Min.
  • O/P VSWR: 2.5 : 1
  • Output Impedance: 75Ω (F-type)
  • IF Channel bandwidth: 60 MHz
  • Output IF Channel 1 (SCR0): 1210 MHz
  • Output IF Channel 2 (SCR1): 1420 MHz
  • Output IF Channel 3 (SCR2): 1680 MHz
  • Output IF Channel 4 (SCR3): 2040 MHz
  • Channel isolation: 20 dB Min.
  • Legacy ports: 2
  • SCR's Control Signals: DiSEqC command extension based on EN-50494
  • Legacy Switch Voltage Control: <14.2 (V) , >15 (H) Volts
  • Legacy 22k sensitivity: 220 mV [min.]
  • DC Power: 250mA@13.5V
  • Working Temperature: - 30°C~ + 60°C
  • Weight: 350g
