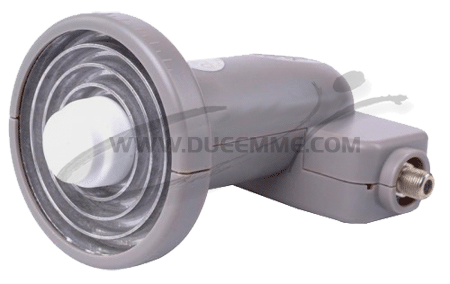

LNB UNIVERSALE PRIME FOCUS

Lnb universale, primo fuoco, 40 mm, uscita singola.
Studiato per parabole primo fuoco consente la ricezione anche dei segnali più deboli ottimizzando i segnali in ingresso tramite il perfetto adattamento illuminatore e convertitore tutto in un blocco.
Bassa cifra di rumore e alto guadagno.
Ideale per le nostre parabole art. 20.79, 20.56, 20.81, 20.59, 20.83

• Input Frequency Range Low Band : 10.7 ~ 11.7 GHz
• High Band : 11.7 ~ 12.75 GHz
• Input feedhorn Type Optimize for prime focus dish
• Output Frequency Range Low Band : 950 ~ 1950 MHz
• High Band : 1100 ~ 2150 MHz
• Local Oscillator Frequency Low Band : 9.75 GHz
• High Band : 10.60 GHz
• L.O. Frequency Stability +/-1 MHz (Max.) @ Room Temp.
• Local Oscillator Frequency Phase Noise -60dBc/Hz @ 1KHz (Max.)
  -85dBc/Hz @ 10KHz (Max.)
  -105dBc/Hz @ 100KHz (Max.)
• Noise Figure 0.3dB (Typ.)
• Conversion Gain 63 ~ 66 dB
• Gain Flatness 26 MHz Bandwidth +/-0.5dB (Typ.)
• Polarity Switching Voltage Low Band : 11.0 ~ 14.0 Vdc
• High Band : 16.0 ~ 20.0 Vdc
• Band Switching Low Band : 0 KHz
• High Band : 22 KHz +/- 4KHz
• Cross-Pol. Isolation 27 dB (Typ.)
• Image Rejection 45 dB (Min.)
• Current Consumption 100 mA (Typ.)
• Output Connector Type 75 OHMS F-Female
• Output Spurious <-60dBm
• Operating Temperature Range -40°C ~ +65°C
• Storage Temperature Range -50°C ~ +70°C
