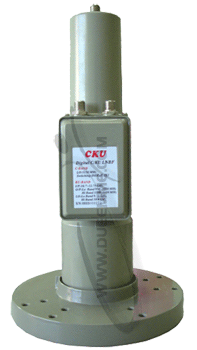

Dual Polarity and Universal LNBF C & KU-Band |
|
Model No. |
C-Band |
Ku-Band |
|
Band |
Low Band |
Hi Band |
Input Frequency Range |
3.4 ~ 4.2 GHz |
10.7 ~ 11.7 GHz |
11.7 ~ 12.75 GHz |
Output Frequency Range |
950 ~ 1750 MHz |
950 ~ 1950 MHz |
1100 ~ 2150 MHz |
L.O. Frequency |
5.15 GHz |
9.75 GHz |
10.6 GHz |
Noise Figure |
17 ° K |
0.3 dB |
F/D Ratio |
0.5~0.7 |
0.5~0.7 |
Input Reflector Type |
Prime Focus |
Offset |
Cross Pol. Isolation |
- |
20 dB (typ.) |
Conversion Gain |
65 dB |
55 dB |
Gain Flatness |
± 0.75 dB / 36 MHz |
± 0.5 dB / 27 MHz |
L.O. Frquency (25 °C)
Stability (-30 °C~ 60 °C) |
± 2.5 MHz |
± 1 MHz ± 3 MHz |
L.O. Phase Noise (1 KHz Offset) (10 KHz Offset) (100 KHz Offset) |
- 50 dBc/Hz - 75 dBc/Hz - 95 dBc/Hz |
- 55 dBc/Hz - 80 dBc/Hz - 100 dBc/Hz |
Image Rejection |
45 dB (min.) |
45 dB (min.) |
Output VSWR |
2.5 : 1 (MAX) |
2.5 : 1 (MAX) |
Output Connector |
75 W F Type (Female) |
75 W F Type (Female) |
D.C. Current Consumption |
250 mA (typ.) |
130 mA (typ.) |
Polarity Switching Voltage |
Vertical : 10 ~ 13.5 V Horizontal : 15.5 ~ 25 V |
Vertical : 11.5 ~ 14 V Horizontal : 16 ~ 19 V |
Band Switching
Low Band Hi Band |
- |
0 KHz 22 KHz ± 4 KHz continuous tone signal |
Operating Temperature |
-30 ° C ~ 70 ° C |
-40 ° C ~ 60 ° C |
